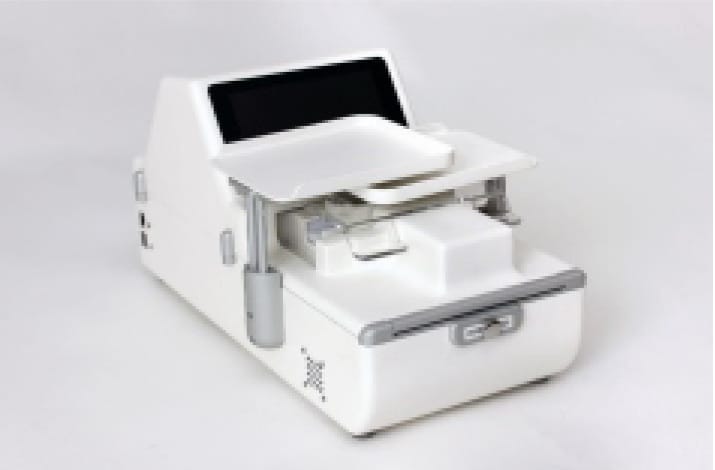

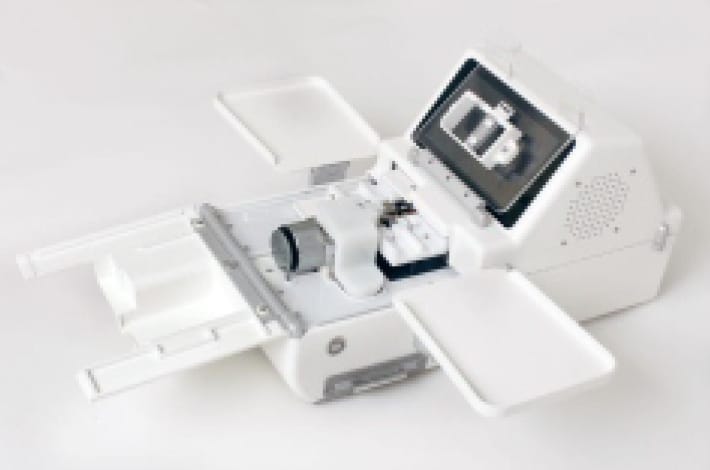

Weldmatic Sterile Connecting Device

Sterile Medical PVC Tube Welder with GREEN Technology

It simply uses the known RF (Radio Frequency) technology for all phases; Sealing - Welding.
It connects medical PVC tubes without disposables; no knife — no blade - no copper wire. Ultimately, negligible odor, waste and exhaust, it gives GREEN output by using RF technology. Integrated Hepa ilter system guarantees the trapping of PVC particles.
Smooth sealing- welding process with no preheating technology

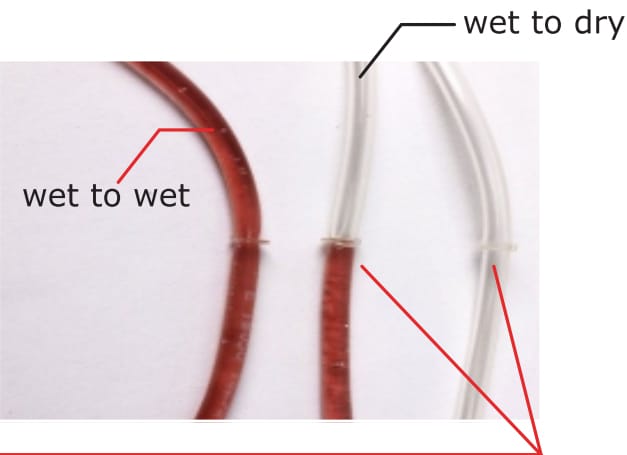

Weldmatic enables sterile connections of all wet and dry tubing combinations of blood bag tubes from various ranges. (tube diameter from 3.8 mm to 4.8 mm)

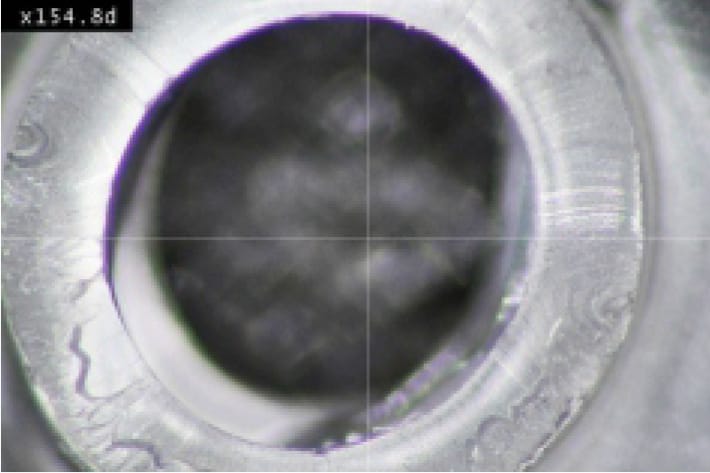

Patented Automatic Tube Connection Point Opening

Weldmatic has unique and patented “automatic opening of liquid low” at the connection point for dry-dry tubes. Optionally closed connection points can be opened by using a tube stripper or with ingers.

Intended Use

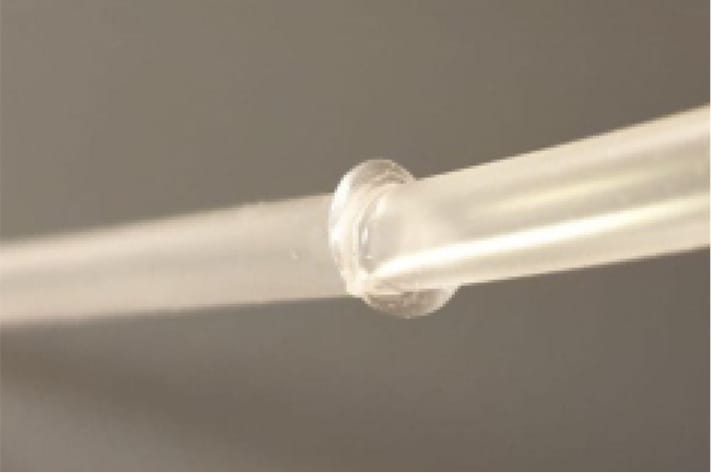

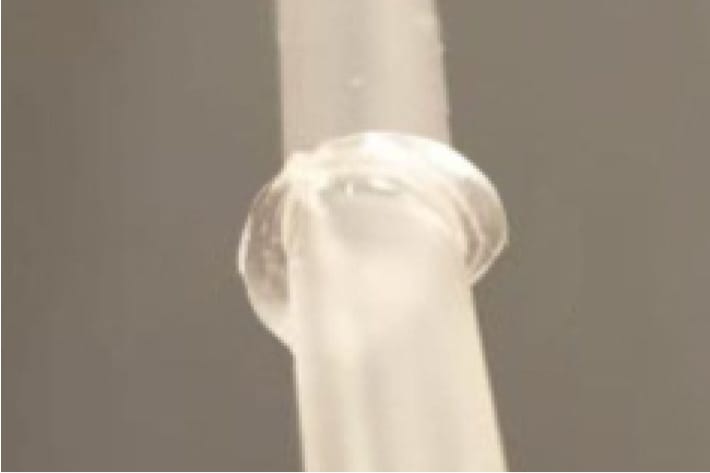

For both dry/dry tubes and wet/dry tubes the welded connection place is automatically opened

Compatible with manual and automatic strippers. The welded connection place for wet tubes can be opened with tube strippers, manual operation not needed.

Speciications

Parameter	Specification
Welding Time	15 sec to 21 sec
Material	PVC Blood bag tubings and other related tubes
Tube Size	Outer Diameter: 3.9 mm to 4.8 mm Inner Diameter: 2.9 mm to 3.2 mm
Power Supply	100 V AC to 240 V AC / 50 to 60 Hz
Ambient Temp	10°C to 40°C
Humidity	20% to 90%
Altitude	Operable until 2500 m
Dimension	With bag trays: 590(W), 253(H), 508(L) mm Without bag trays: 276(W), 253(H), 508(L) mm
Bi directional	Data transfer
Barcode Reader	Yes / Optional
iQ-Link SW	Software for data collection and data transfer
Color T-Screen	With guiding symbol
