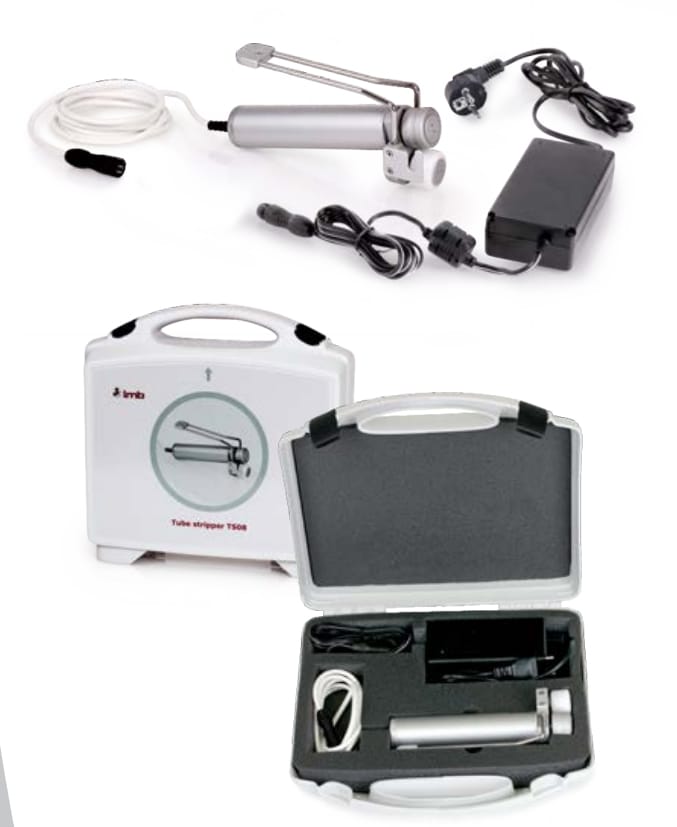

Automatic Tube stripper TS08

  • New and redesigned tube holder for beater tube guidance
  • Designed for right and left hand use
  • Low weight for easy handling
  • Swift and complete stripping of blood bag tubes
  • Ideal for all commercial blood bag systems on the market
  • Automatically centered tubing fed through pair of rollers by a guidance system
  • Preventing coagulation of blood in tubing prior to preparing segments
  • Power supply with stabilized output, low ripple & low interference
  • Short circuit & overload protection
  • High efficiency and low energy consumption
Overall dimensions (handle closed)75 x 57 x 195 mm
Overall dimensions (handle open)110 x 57 x 195 mm
Max striping tube diameter6.5 mm
Stripping wheel diameter33 mm
Stripping wheels angle opening25 deg
Tube stripper body diameter40 mm
Max stripping speed400 mm/sec
Weight without power supply~800 g
Operating temperature+10 to +40 °C
Storage and transport temperature-20 to +50 °C
Power supply voltage100-240 V AC
Input frequency50 Hz / 60 Hz
DC motor supply voltage12V
